Solar Power – Harnessing the sun

Solar Technology – PhotoVoltaic (PV)

Photovoltaics is a technology that converts solar power from the sun into direct current electricity. A photovoltaic system uses solar panels made up of a number of solar cells to harness the sun’s energy. This is considered an incredibly sustainable method of energy supply which draws from the planet’s most plentiful resource, the sun.  This type of solar technology works through the use of photons from sun light to convert radiative energy into valuable electricity.

Solar power Technology

Solar Panels

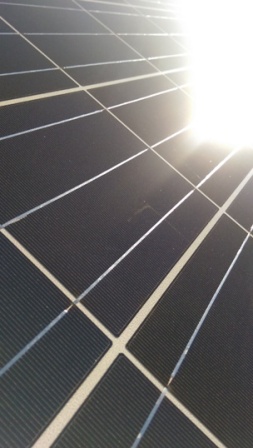

Solar modules (or panels) are made up of photovoltaic cells which convert solar power from the sun into electric potential, producing an electric current in the process. This travels through cabling from the modules to the solar inverter. The majority of modules use wafer based crystalline silicon cells or thin film cells made from cadmium telluride or silicon. The electrical connections are made in series to achieve a desired output voltage and/or in parallel to provide a desired current capability.

Several solar cells electrically connected in series and mounted in a frame make up the photovoltaic module. The majority of modules use wafer based crystalline silicon cells or thin film cells made from cadmium telluride or silicon. Electrical connections between modules are made in series to achieve a desired output voltage and/or in parallel to provide a desired current capability. Modules are designed to supply electricity at a certain voltage, such as the common 12 volt system. The current produced depends on how much light hits the module. Multiple modules wired together form an array. The larger the array, the more electricity produced.

Solar Inverter

Solar power Technology

A solar inverter converts the variable direct current (DC) output of a PV solar panel into alternating current (AC). This can be fed into a commercial electrical grid or used by a local, off grid electrical network. The electricity generated by the solar panels comes in the form of DC but most home appliances and lights use AC. Thus the electricity must pass through an inverter which transforms the electricity from DC to AC.

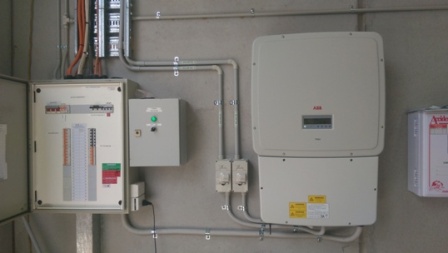

Switchboard

An electric switchboard directs solar power from one or more sources of supply to several smaller regions of usage. Electricity travels from the inverter to your switchboard, where it is then distributed throughout your house to all your lights and appliances.

The switchboard  contains switches that allow electricity to be redirected either to or from the electricity network grid.  The role of the switchboard is to allow the division of the current supplied into smaller currents for further distribution. It also provides switching, current protection and metering for those various currents.

Meter

Electricity meters measures the amount of electric energy that is used by residences or businesses. They are generally installed by electric utilities to measure electric energy delivered to their customers for billing purposes. Meters are also used in solar power generation for the same purpose. However, when your solar system generates more than what you use, the excess electricity is fed into your network grid.

You then start receiving a feed in tariff from your electricity retailer for this solar power. In circumstances where energy savings during certain periods are desired, meters can also be used to measure demand. Metering can be adjusted to record usage during peak (high tariff) periods and off peak (low tariff) periods.

If you would like to learn more about how these components fit into the system design of the solar system, you can have a look at our technical reference page here.

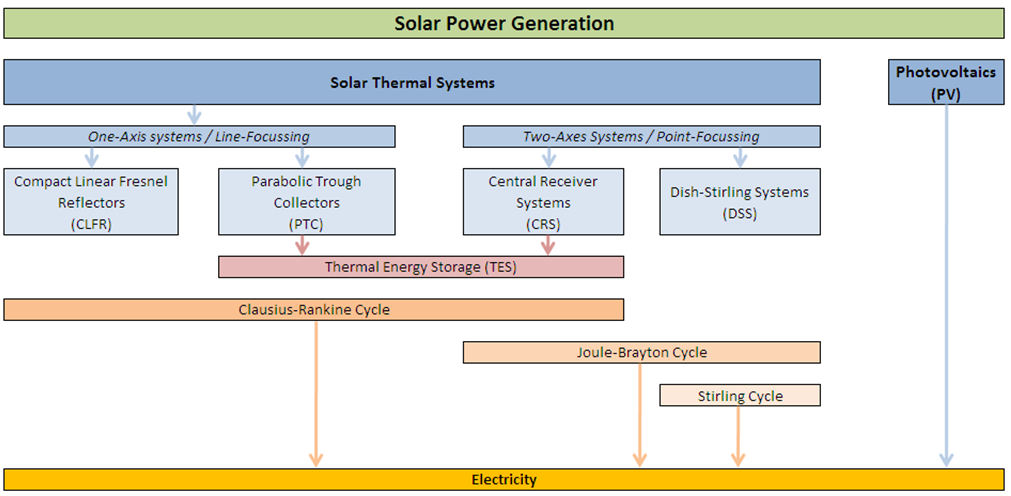

Solar Technology – Concentrated Solar Power (CSP)

The basic operation of Concentrating Solar Power (CSP) solar technology comprises the use of reflective surfaces. These concentrate solar irradiation (sun light) onto the surface of a receiver in order to heat a Heat Transfer Fluid (HTF). The heat absorbed can be used in a thermodynamic power cycle to produce electrical energy. CSP technologies use Direct Normal Irradiation (DNI). This is the part of the Global Horizontal Irradiation (GHI) which can be redirected and thus may be concentrated. Currently there are various approaches for concentrating and collecting solar energy. Some of these can achieve concentration ratios of up to 4,000 suns (4,000 times the concentration of normal sunlight on a surface area).

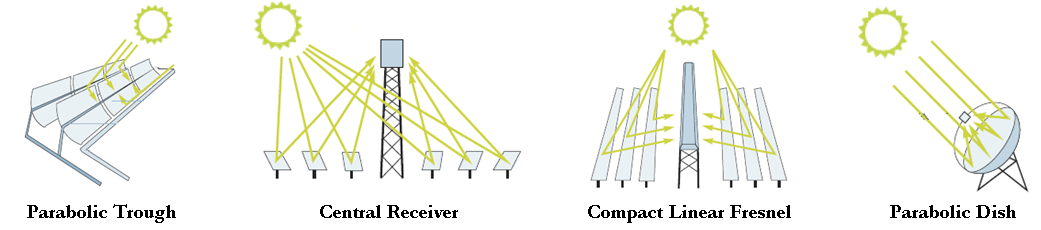

The CSP technologies currently available differ depending on whether they are line or point-focusing. Additionally, there is a distinction between the Fresnel concentrator (the distribution of an optical concentrator in the form of small planar fragments) and continuous curved concentrators. The four CSP technologies are namely (by degree of commercialization):

 Solar power Technology

Parabolic Trough Collectors (PTC – line-focusing – tracking receiver).

Central Receiver Systems (CRS – point-focusing – fixed receiver).

Linear Fresnel Reflectors (LFR – line-focusing – fixed receiver).

Parabolic Dish Systems (PDS – point-focusing – tracking receiver).

Solar power Technology

CSP Efficiency

There are two opposing factors that play a major role in determining the overall system efficiency of a CSP power plant. These are the efficiency of the steam cycle that is used to generate electricity and the efficiency of the receiver that is used to collect the sunlight. In heat extraction cycles, the Carnot efficiency of the power block (the components of the power plant that use a hot fluid to generate electricity) increases with temperature of the hot fluid.

However, the thermal losses of the solar receiver increase with the fourth power of its surface temperature. Therefore, the efficiency gains of the power block from a higher temperature can be more than negated by the increasing thermal losses from the receiver due to the higher temperature. This is why the overall system efficiency achieves a certain maximum as hot fluid temperature increases.
The maximum efficiency can be increased and shifted towards higher temperatures when the solar irradiation is further concentrated by the CSP plant’s collectors.

The thermal losses remain constant at the same receiver surface area, whereas the yielded solar power increases. This is why CSP systems with higher concentration ratios can achieve higher system efficiencies and have a higher future potential.
The Figure below shows this behaviour with various graphs for system efficiencies with different concentration ratios. Also, it displays a representative receiver efficiency curve for a concentration ratio of 2000.

 Solar power Technology
